Using Geo/parquet

Dr. Ryan Peek

Packages

The packages we’ll need:

library(dplyr) # wrangling
library(ggplot2) # viz
library(fs) # file management
library(here) # directory

# spatial packages
library(tigris) # for census/geospatial data
library(sf) # wrangling geospatial data
library(geojsonsf)
library(nhdplusTools) # all things rivers in US
library(geoarrow)

Code Ready?

  • Open RStudio
  • Website:

https://d-rug.github.io/using-geoparquet-R



01:00

What is a .parquet file? (and why bother!?)

  • The parquet format is a file type that contains a table inside similar to a .csv

  • However these files are stored in binary form not as plain text

  • parquet files are column-oriented (unlike csv) and each column is stored independently

  • parquet embeds the schema or data types/structure within the data itself

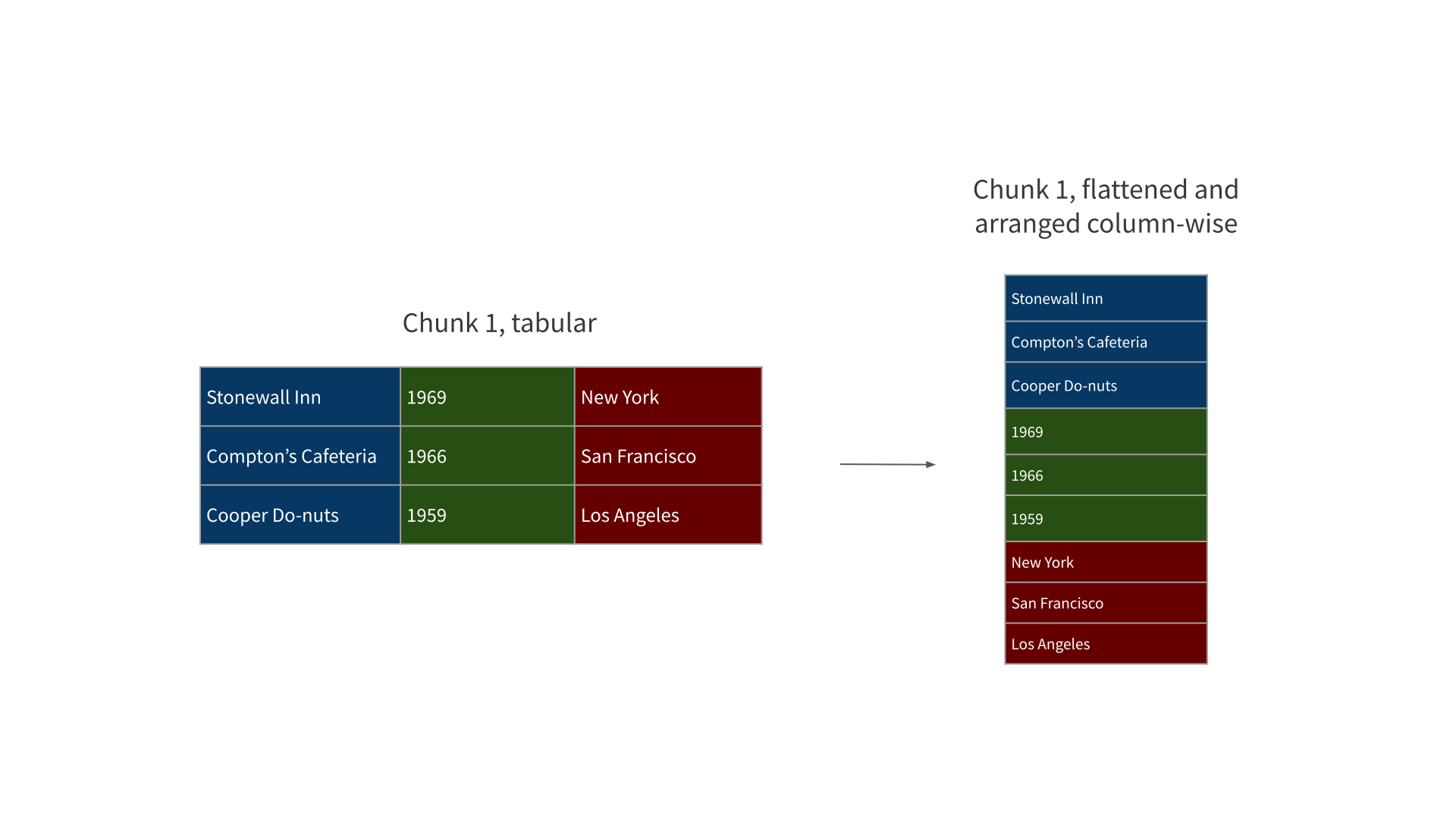

Columnar data comparison following parquets column first approach

Columnar Data

https://ryanpeek.org

geoarrow

  • package that leverages {sf} and arrow
  • really fast way to store large spatial data
  • can read or write parquet & sf files 1

Making space for time…

  • parquet files aren’t just about compression (though some savings here)

  • The real benefit is speed reading/operating/writing data!

Practice!

NHD Watersheds

  • Use {nhdplusTools} to get HUC12s for CA 1
  • Save out as a parquet file with {sf} class
  • Read in and make a map!

Watershed Boundary Dataset nested structure

Map of healthy watersheds with zoom circle

HUC12

Get CA Outline and HUC12

# create dir to save data
fs::dir_create("data")

# get CA and download HUC12s
ca <- tigris::states(progress_bar=FALSE) %>% filter(NAME=="California")

# can specify any given option for huc8, huc10,etc
huc12 <- nhdplusTools::get_huc(ca, type = "huc12") # this takes a minute or two
huc12 <- sf::st_cast(huc12, "MULTIPOLYGON") # fix geometry
# save out
geoarrow::write_geoparquet(huc12, here::here("data/nhd_huc12.parquet"))

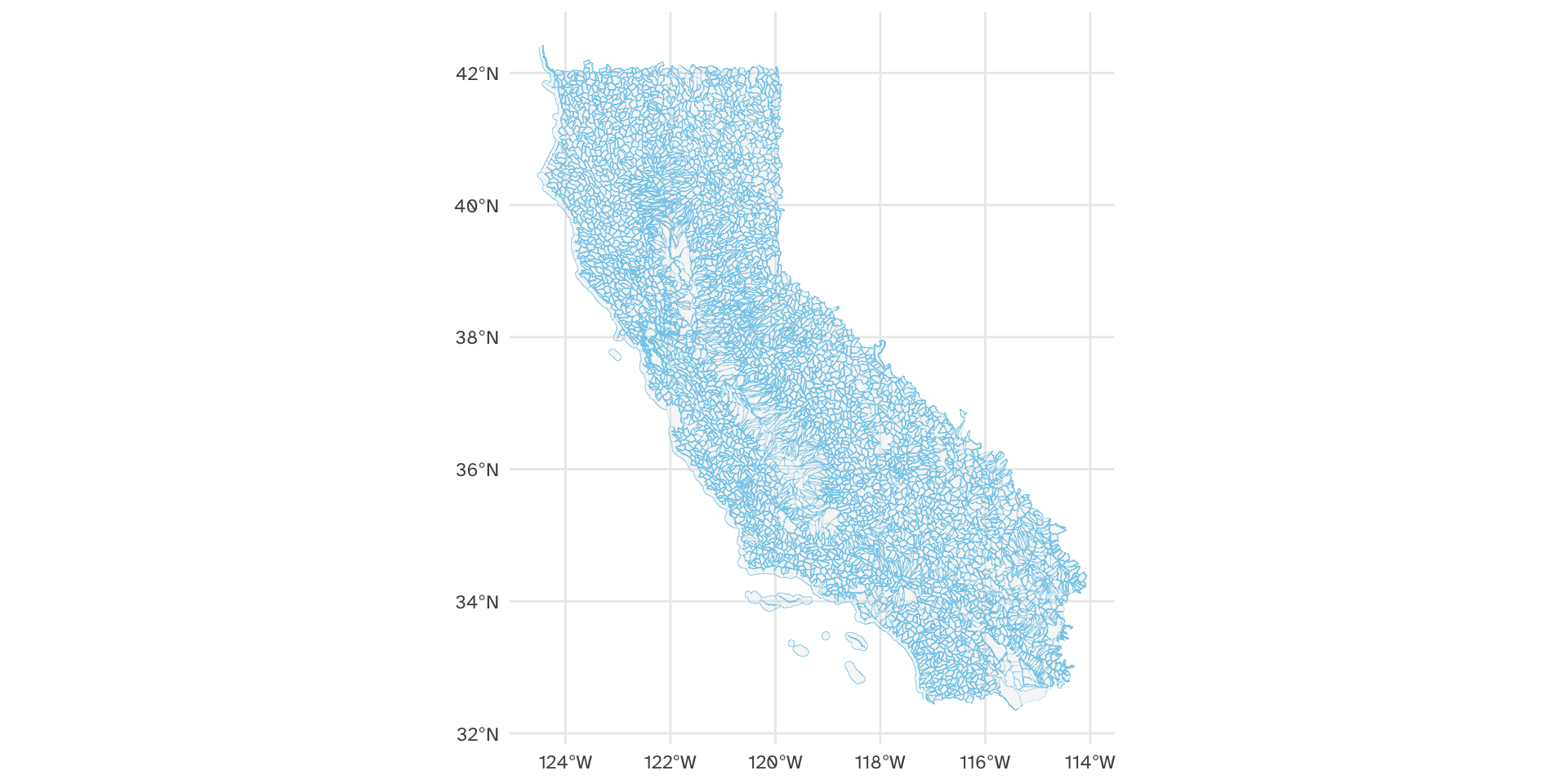

Read in and Map!

h12 <- read_geoparquet_sf(here::here("data/nhd_huc12.parquet"))

# plot
ggplot() + geom_sf(data=h12, color="skyblue", alpha=0.3, linewidth=0.05)

CA Vector Buildings

  • https://github.com/microsoft/USBuildingFootprints
  • Downloaded CA only (geoson.zip is 466MB, unzipped 3.6GB)
  • Includes building polygons for all of CA (n=11,542,912!)

Read it in, Write it Out

library(tictoc)
tic()
df <- geojsonsf::geojson_sf("~/Downloads/California.geojson")
toc()
# 257.514 sec elapsed

# write it out
tic()
geoarrow::write_geoparquet(df, here::here("data/ca_bing_buildings.parquet"))
toc()
# writes in 11.745 seconds!

# read it back in
tic()
df_parq <- geoarrow::read_geoparquet_sf(here::here("data/ca_bing_buildings.parquet"))
toc()
# read in 14.724 seconds!

Crop by a County

library(tigris)

# get building data
df_parq <- geoarrow::read_geoparquet_sf(here::here("data/ca_bing_buildings.parquet"))
cnty <- counties(state="CA")
sel_cnty <- cnty %>% filter(NAME=="Butte") %>% st_transform(4326)
st_crs(df_parq)$epsg
st_crs(sel_cnty)$epsg

# crop
sf_use_s2(FALSE)
sel_df <- df_parq[sel_cnty,]

Filter to Largest Buildings

  • Here we can read in, add area, and filter to buildings in the top 5% (largest area) of the county
sel_df <- geoarrow::read_geoparquet_sf(here::here("data/ca_bing_buildings_butte.parquet"))
# turn off s2
sf_use_s2(FALSE)

# add area
sel_df <- sel_df %>%
  mutate(build_area = st_area(geometry))

# sort by largest and select top 5% largest
sel_df_lrg <- sel_df %>%
  arrange(build_area) %>%
  slice_max(order_by = build_area, prop = 0.05)

Map!

Buildings in the top 5% for area in the county
